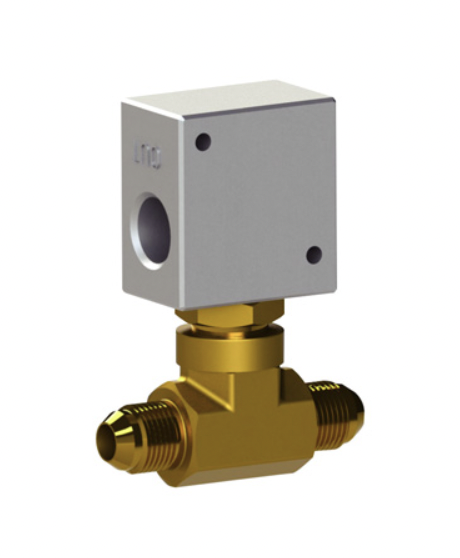

LNG TERMOSTAT(180°) VALFİ
| Özellikler |
|---|
| PN：2.5 MPa (LNG Valve) |
| PN：1.5 MPa (Coolant Valve) |
| DN: Ø10 |
| Dizayn Sıcaklığı：-40℃ ~+125℃ |
| Akışkan: LNG, LO2, LN2, LAr, CO2 |

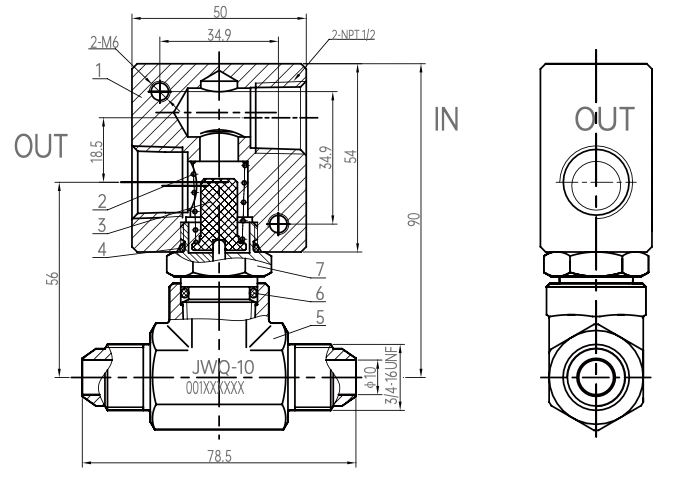

| Malzemeler | ||||||||
|---|---|---|---|---|---|---|---|---|
| 1 | Coolant Valve Body | 6082-T6 | 4 | O Ring | FKM 70A | 7 | Sıcaklık Sensörü | HPb59-1 |
| 2 | Yay | S30210 | 5 | LNG Gövde | HPb59-1 | |||
| 3 | Piston | POM | 6 | O Ring | FKM 70A | |||
| Part | LNG End | Vehicle Coolant End |
|---|---|---|
| PN | 2.5MPa | 1.5MPa |
| DN | Ø10mm | Ø11mm |
| Dizayn Sıcaklığı | -40° C ～ +125° C | |
| Akışkan | CNG | Vehicle Coolant |
| Engine Coolant Flow at Temp. of LNG<40℃ | ≥30L/Min | |
| Engline Coolant Flow at Temp.of LNG>50℃ | 5.3±10%L/Min | |
| Material of Valve Gövde | HPb59-1 | Aluminum Alloy |
